| Brand Name : | GrowBetter, RIKOLITE, OEM |
| Model Number : | BRI-H315S-US-260 |
| Certification : | CE, RoHs |
| Price : | Negotiable |
| Delivery Time : | 1~5 days for sample, 7~15 days for orders |
| Payment Terms : | T/T, Western Union, PayPal, TransferWise |
| Supply Ability : | 10000pcs/month |

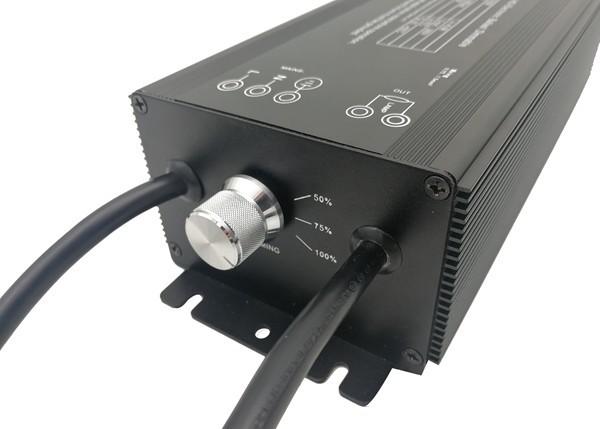

Grow Light Ballast low frequency digital electronic ballast 315W Dimmable US Market
Run 315W CMH CDM Lamp.
Low frequency
High power factor PF>0.95
Low harmonic General harmonic THD≤ 10%
High light efficiency and energy saving.
Low power consumption
More lumens: 20-30% more lumens than magnetic ballasts
Constant output of power and light when voltage varies between -15%~15% of rating voltage
Open circuit and short circuit protection functions available.
Ignition failure protection
Overheat protection
Easy installation Easy to hang the lamp, no need any external starter and compensation capacitor.
Completely silent: no more humming and buzzing.
Constant output of power when voltage fluctuate with no flickering
No fans inside, water resistance and maintenance free operation.
| Specification | Model | BRI-H315S-EU-260 | BRI-H315S-US-320 |
| Material | Aluminum | Aluminum | |
| Dimension | 260*100*63mm | 320*100*63mm | |
| Net Weight | 1320g | 1320g | |
| Style | Electronic | Electronic | |
| Usage | HID, High Intensity Discharge | HID, High Intensity Discharge | |
| Matched Bulb | HPS, MH, CMH, CDM, XED | HPS, MH, CMH, CDM, XED | |
| Technical Parameters | Input Voltage | 165~265VAC | 165~265VAC |
| Input Current | 2.15A~1.34A | 2.15A~1.34A | |
| Input Power | 345W±5 | 345W±5 | |
| Input Frequency | 50Hz～60Hz | 50Hz～60Hz | |
| Surge Current | ＜20A | ＜20A | |
| Power Factor | ＞0.95 | ＞0.95 | |
| THD | ＜10% | ＜10% | |
| Input Insurance | 250V/4A | 250V/4A | |
| Ouput Power | 315W±5 | 315W±5 | |
| Lamp Voltage | 75V～150V | 75V～150V | |
| Output Frequency | 160Hz±10Hz | 160Hz±10Hz | |
| Crest Factor | ＜1.7 | ＜1.7 | |
| Open Circuit Protection | ＞300V | ＞300V | |
| Ignition [striking] voltage | ＜5KV | ＜5KV | |
| Short-circuit protection | YES | YES | |
| Open-circuit protection | YES | YES | |
| Ignition failure protection | YES | YES | |
| Thermal protection | YES | YES | |
| Lamp failure protection | YES | YES | |
| Low-voltage protection | YES | YES | |
| Ballast to Lamp distance | <5m | <5m | |
| Working temperature | -25℃～+50℃ | -25℃～+50℃ | |
| Min starting temperature | -25℃ | -25℃ | |
| EMC | EN55015,FCC18C | EN55015,FCC18C | |
| Support dimming | YES | YES | |
| Dimming setting | 3-phase manual control | 3-phase manual control | |
| Packaging | Inner Box Size | ||
| Carton Package | 39*27*33 cm | 39*27*33 cm | |
| Package Qty. | 10 | 5 | |
| Package G.W. | 12.6KG | 17.8kg | |
| Package CBM |
|
|
